Bonus: play with some funny masks¶
Skykatana has a funny side too. It includes algorithms to draw any picture with healpix pixels on the sky! Below, we will perform the much desired Rubin-Roman intersection
# Make Rubin map
rubin_map = SkyMaskPipe.image_to_healsparse("./images/rubinobs.jpg",
order_sparse=11, order_cov=4, # orders
ra0_deg=0.0, dec0_deg=-20.0, # ra-dec of center
width_deg=40.0, rotation_deg=0.0, # height inferred from the image aspect ratio
invert=True, # set True if the figure is dark on a bright background
blur_radius=0.0, # try 1–2 px if edges are noisy
threshold=None, # use Otsu; or set e.g. 128 manually
expand_px=1, # dilate lines by N pixels (helps thin features)
samples_per_pix=4, # nicer edges; use 1 for speed
edge_eps=0.0, # small (e.g., 0.01) to slightly thicken
chunk_size=50_000, return_bit_packed=False )
# Make Roman map
roman_map = SkyMaskPipe.image_to_healsparse("./images/roman.jpg", #
order_sparse=11, order_cov=4, # orders
ra0_deg=7, dec0_deg=-18.0, # ra-dec of center
width_deg=37.0, rotation_deg=0, # height inferred from the image aspect ratio
invert=True, # set True if the figure is dark on a bright background
blur_radius=0.0, # try 1–2 px if edges are noisy
threshold=None, # use Otsu; or set e.g. 128 manually
expand_px=1, # dilate lines by N pixels (helps thin features)
samples_per_pix=4, # nicer edges; use 1 for speed
edge_eps=0.0, # small (e.g., 0.01) to slightly thicken
chunk_size=50_000, return_bit_packed=False)
Put them in a pipeline and get intersection.
funpipe = SkyMaskPipe()
funpipe.rubinmask = rubin_map
funpipe.romanmask = roman_map
funpipe.combine(positive=[('rubinmask','romanmask')], order_out=11, order_cov=4);
[combine] aligning coverage for 'rubinmask' : c4 → c4
[combine] aligning coverage for 'romanmask' : c4 → c4
[combine] target=(o11, c4), work_order=11, r2=1
[combine:&] group of 2 stages: orders=[11, 11] -> work 11
[combine] done: order_out=11 (NSIDE=2048), order_cov=4 (NSIDE=16), valid_pix=108,602, area=89.013 deg², bit_packed=True

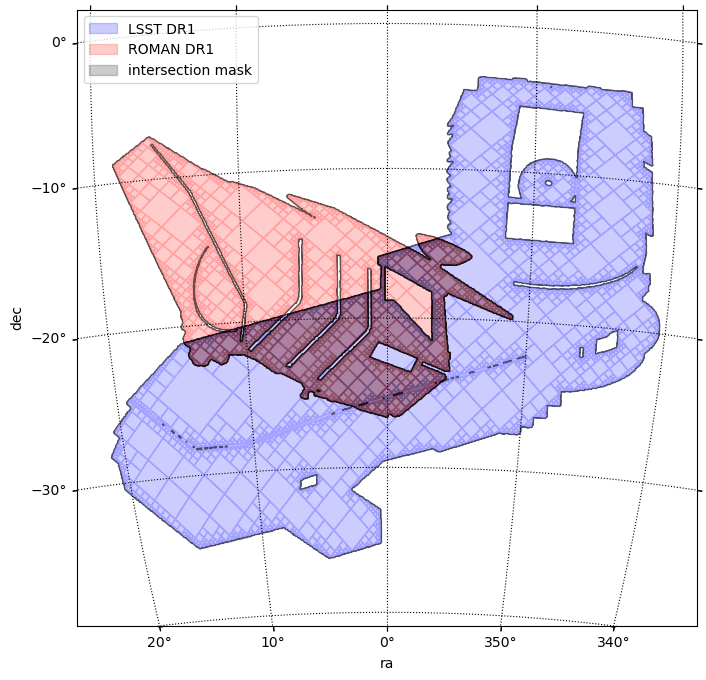

Plot their MOCs and enjoy !
center = SkyCoord(0*u.deg, -20*u.deg) ; fov = 41*u.deg
fig, ax, wcs = funpipe.plot_moc(stage='rubinmask', center=center, fov=fov, figsize=[8,8], label='LSST DR1', color='b', order_force=11)
fig, ax, wcs = funpipe.plot_moc(stage='romanmask', center=center, fov=fov, figsize=[8,8], label='ROMAN DR1', color='r', order_force=11, ax=ax, wcs=wcs)
fig, ax, wcs = funpipe.plot_moc(stage='mask', center=center, fov=fov, figsize=[8,8], label='intersection mask', color='k', order_force=11, ax=ax, wcs=wcs)
plt.legend();
Retrieving pixels...
Found 668383 pixels
Creating display moc from pixels...
MOC max_order is 11 --> degrading forcedly to 11...
Drawing plot...
Retrieving pixels...
Found 280487 pixels
Creating display moc from pixels...
MOC max_order is 11 --> degrading forcedly to 11...
Drawing plot...
Retrieving pixels...
Found 108602 pixels
Creating display moc from pixels...
MOC max_order is 11 --> degrading forcedly to 11...
Drawing plot...
Just for the sake of practice, lets drill the holes due to stars in this precious area
starq = {'search_stage': funpipe.mask, # The stage where we want to retrieve stars
'cat':"https://data.lsdb.io/hats/gaia_dr3", # URL of HATS catalog, e.g. for Gaia
'columns':['ra','dec','phot_g_mean_mag'], # Columns to retrieve from it
'gaia_gmag_lims':[7,18], # G_band magnitude limits
'radfunction': partial(radfunction, completeness=0.85, band='r'), # Star radius function. Must be wrapped with partial()
'avoid_mw': False, # Avoid Milky Way plane & bulge
'b0_deg': 15., # Mikly Way plane zone of exclusion from -b to b (deg)
'bulge_a_deg': 25., # Milky Way bulge semimajor axis length (deg)
'bulge_b_deg': 20., # Milky Way bulge semiminor axis length (deg)
'max_area_single': 400., # Optional - max area to make in a single query
'target_chunk_area': 400., # Optional - target area of chunks that the search_stage is splitted into
'coarse_order_bfs': 5 # Optional - coarse order to perform chunking
}
BUILDING STAR MASK >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Area of search_stage is 104.96 deg2 -> no splitting
Chunk 1/1: querying catalog ...
--- Stars found : 100367
--- Pixelating circles from DataFrame
Order :: 15 | pixelization_threads=1
Circles to pixelate: 100367 in batches of 600000
processing circles 0:100367 ...
--- Star mask area : 12.417744948852157
# Subtract the star mask from the previous (intersection) mask
funpipe.combine(positive=['mask'], negative=['starmask'], order_out=15, order_cov=4)
[combine] aligning coverage for 'mask' : c4 → c4
[combine] aligning coverage for 'starmask' : c4 → c4
[combine] target=(o15, c4), work_order=11, r2=256
[combine:+] stage at order 11 -> work 11
[combine] done: order_out=15 (NSIDE=32768), order_cov=4 (NSIDE=16), valid_pix=25,137,384, area=80.481 deg², bit_packed=True

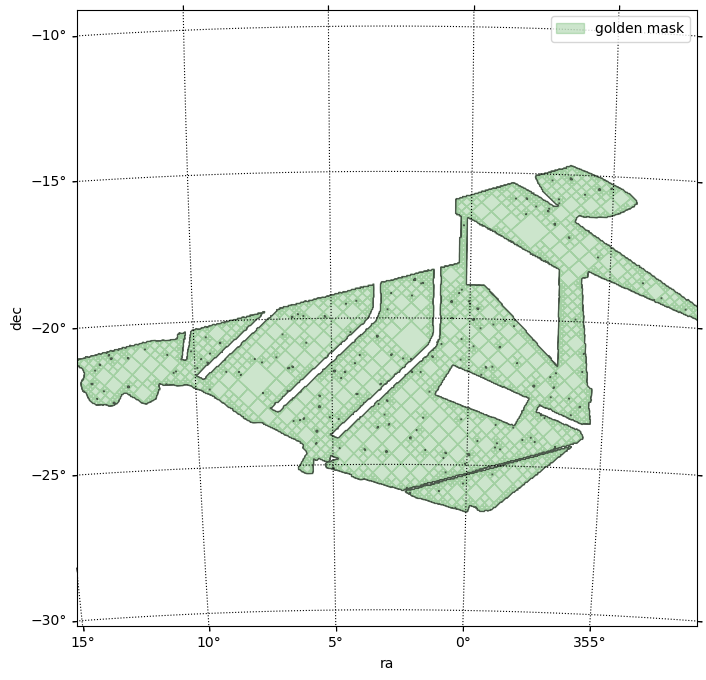

# Plot the new golden mask!
center = SkyCoord(3*u.deg, -20*u.deg) ; fov = 21*u.deg
fig, ax, wcs = funpipe.plot_moc(stage='mask', center=center, fov=fov, figsize=[8,8], label='golden mask', color='g')
plt.legend();
Retrieving pixels...
Found 25137384 pixels
Creating display moc from pixels...
MOC max_order is 15 --> degrading to 11...
Drawing plot...

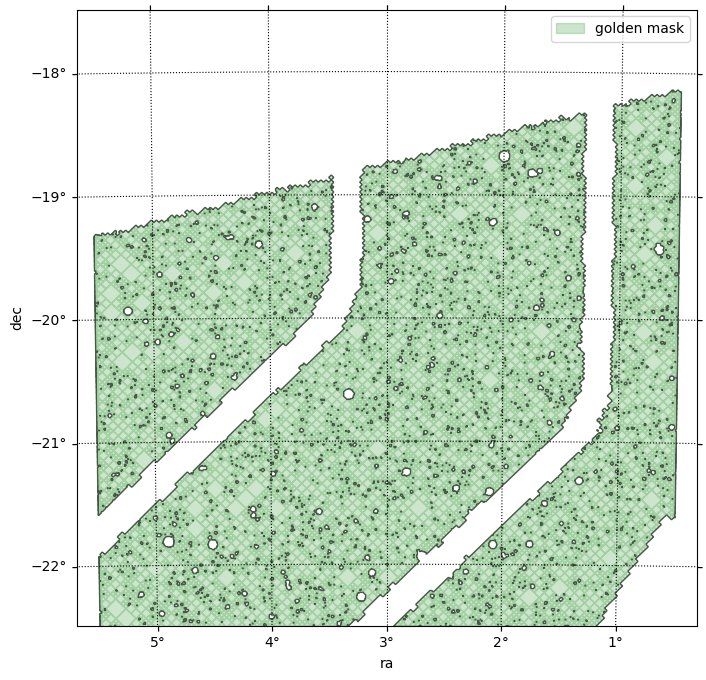

# Plot a close look to the new golden mask!
center = SkyCoord(3*u.deg, -20*u.deg) ; fov = 5*u.deg
clipra = [3-0.5*5, 3+0.5*5.]
clipdec = [-20-0.5*5, -20+0.5*5]
fig, ax, wcs = funpipe.plot_moc(stage='mask', center=center, fov=fov, figsize=[8,8], label='golden mask', color='g',
clipra=clipra, clipdec=clipdec)
plt.legend();
Retrieving pixels inside clip box...
Found 4277264 pixels
Creating display moc from pixels...
MOC max_order is 15 --> degrading to 13...
Drawing plot...
