Creating Star Masks for Rubin in RSP with Skykatana¶
This example shows how to use SkyKatana to construct a mask due to bright stars for the Vera Rubin, by querying Gaia sources on-demand, calculating exclusion radii and pixelating circular shapes It is meant to be run in the Rubin Science Platform, although it will work anywhere as long as the catalog being queried is available in HATS/LSDB format.
The main class is called SkyMaskPipe. After a pipeline is instantiated, you can add masks (a.k.a. maps) due to various effects. These masks are independent boolean (or bit-packed boolean) healsparse maps we call stages. Stages are stored within the class along with some metadata and some typical stages are:
- propmask :: mask created from the combination of multiple healsparse propery maps matching some criteria
- starmask :: mask created from a list of circular sources, usually stars, queried catalogs like Gaia in HATS/LSDB format
- mwmask :: mask for the Milky Way plane and bulge, created to avoid attempting large queries in dense regions
Once you have a few stages in the pipeline, their masks can be combined by combine() into:
- mask :: mask generated from the logical combination of the maps above
Imports and input data files¶
We should start by importing SkyMaskPipe, which is the main Skykatana class, along with some auxiliary packages.
from skykatana import SkyMaskPipe
import matplotlib.pyplot as plt; from pathlib import Path
import astropy.units as u; from astropy.coordinates import SkyCoord
import lsdb
1. Define search area and create pipeline¶
First we have to define a seach area where to look for stars. While it can be any stage or boolean map, in Rubin it will be most likely some property map for example of coverage in a given band or total exposure time. For the following example, we create a fake search area out of a rectangle bound by ra-dec limits (zone), and store it in the propmask stage.
# Create the MOC for a zone in the sky and get its pixels
ord_sparse = 12
ord_coverage = 5
moc = MOC.from_zone(SkyCoord([[237, -15], [320, 0]], unit="deg"), max_depth=ord_sparse)
pixels = moc.flatten().astype(np.int64)
# Create empty map and update its pixels
mapbool = hsp.HealSparseMap.make_empty(2**ord_coverage, 2**ord_sparse, dtype=np.bool_)
mapbool.update_values_pix(pixels, True)
# Instantiate the pipline and store in the propmask stage
mkp = SkyMaskPipe(order_out=15)
mkp.propmask = mapbool.as_bit_packed_map()
Just type the instance name (mkp) to display useful information like orders, valid pixels, area, etc.
propmask : (ord/nside)cov=5/32 (ord/nside)sparse=12/4096 valid_pix=6015370 area=1232.58 deg² pix_size= 51.5"

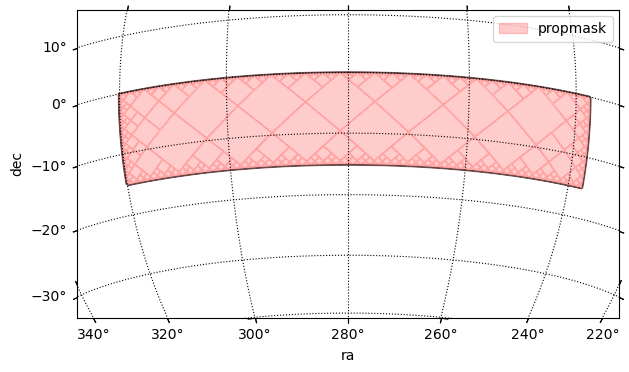

And lets check how it looks in the sky
center = SkyCoord(280*u.deg, -15*u.deg) ; fov = 50*u.deg
fig, ax, wcs = mkp.plot_moc(stage='propmask', center=center, fov=fov, figsize=[7,4], label='propmask', color='r')
plt.legend();
Retrieving pixels...
Found 6015370 pixels
Creating display moc from pixels...
MOC max_order is 12 --> degrading to 8...
Drawing plot...
2. Define radius function and star query dictionary¶
Now, we define the radius function that will assign an exclusion radius around the stars. This function, which will passed to SkyKatana, can be completely customized with the only requirement that it must take an input dataframe (e.g. with star magnitudes) and add a "radius" column (in deg) with finite positive values for each row element. In the short example below, radfunction() can be customized according to completeness level and desired Rubin band.
def radfunction(df: pd.DataFrame, **kwargs):
mag = 'phot_g_mean_mag' # define magnitude to use
band = kwargs.get('band', 'r') # extract band
completeness = kwargs.get('completeness', 0.85) # extract completeness level
if band == 'r':
if completeness==0.85:
nconst, alpha = (1234.7,-0.28) # normalization constant and exponential slope alpha
magcut = 17.19 # magnitude cutoff above which stars get a fixed faint_radius
faintrad = 10.2 # faint radius [arcsec]
elif completeness==0.90:
nconst, alpha = (1318.6,-0.28) # normalization constant and exponential slope alpha
magcut = 17.24 # magnitude cutoff above which stars get a fixed faint_radius
faintrad = 10.8 # faint radius [arcsec]
# Set radius
df['radius'] = np.where(df[mag] <= magcut, nconst*np.exp(alpha*df[mag])/3600., faintrad/3600.)
Passing radfunction() as an input argument, enables to completely redefine the radii assigned to stars according to different criteria, while still taking advantage of efficient search and pixelization capabilities of SkyKatana.
Now we define the star query dictionary. This controls where and which stars will be queried, as well as some performance parameters to keep memory usage under control. If the search area is large, Skykatana can break it into chunks of healpix pixels that are queried, processed and coadded at the end, thus enabling the procesing of thousands of deg2.
starq = {'search_stage': mkp.propmask, # The stage where we want to retrieve stars
'cat':"https://data.lsdb.io/hats/gaia_dr3", # URL of HATS catalog, e.g. for Gaia
'columns':['ra','dec','phot_g_mean_mag'], # Columns to retrieve from it
'gaia_gmag_lims':[7,18], # G_band magnitude limits
'radfunction': partial(radfunction, completeness=0.85, band='r'), # Star radius function. Must be wrapped with partial()
'avoid_mw': True, # Avoid Milky Way plane & bulge
'b0_deg': 15., # Mikly Way plane zone of exclusion from -b to b (deg)
'bulge_a_deg': 25., # Milky Way bulge semimajor axis length (deg)
'bulge_b_deg': 20., # Milky Way bulge semiminor axis length (deg)
'max_area_single': 400., # Optional - max area to make in a single query
'target_chunk_area': 400., # Optional - target area of chunks that the search_stage is splitted into
'coarse_order_bfs': 5 # Optional - coarse order to perform chunking
}
Large-scale queries might accidentally go deep into the Milky Way plane or bulge, stressing database systems and leading to memory issues or failed searches. To prevent this, when avoid_mw=True SkyKatana will create a MOC map of the galaxy following the parameters provided for the plane band and (elliptical) bulge, and subtract it before searching for stars. In addition, the galaxy mask will get stored in mwmask, in case you need to combine it with other stages.
Stars retrieved
Note that the stars returned will always follow the search stage minus the galaxy mask, if chosen so, but the search stage in the pipeline remains untouched. Subtract mwmask from any stage, when needed.
3. Search stars, construct its mask and plot¶
Before searching, we should start the Dask client to set the number of workers and memory resources.
from dask.distributed import Client
client = Client(n_workers=3, threads_per_worker=1, memory_limit="6GiB")
We have everything ready. Just choose the orders for pixelization and run
BUILDING STAR MASK >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
--- Avoid Milky Way is ON
Area of search_stage (MW subtracted) is 701.12 deg2 -> splitting...
Got 3 chunks of areas [367.98 26.18 362.57] deg²
Chunk 1/3: querying catalog ...
--- Stars found : 1993677
--- Pixelating circles from DataFrame
Order :: 15 | pixelization_threads=1
Circles to pixelate: 1993677 in batches of 600000
processing circles 0:600000 ...
processing circles 600000:1200000 ...
processing circles 1200000:1800000 ...
processing circles 1800000:1993677 ...
Chunk 2/3: querying catalog ...
--- Stars found : 236614
--- Pixelating circles from DataFrame
Order :: 15 | pixelization_threads=1
Circles to pixelate: 236614 in batches of 600000
processing circles 0:236614 ...
Chunk 3/3: querying catalog ...
--- Stars found : 1430598
--- Pixelating circles from DataFrame
Order :: 15 | pixelization_threads=1
Circles to pixelate: 1430598 in batches of 600000
processing circles 0:600000 ...
processing circles 600000:1200000 ...
processing circles 1200000:1430598 ...
Milky Way mask stored in stage -> mwmask
--- Star mask area : 255.8467114964821

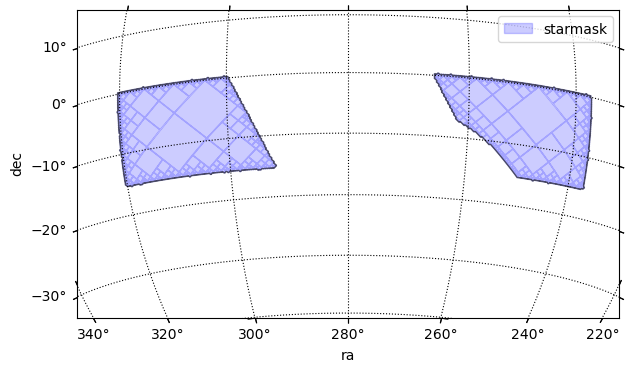

Verify a new stage starmask has been created and check how it looks. It is clear that the empty zone at ra=~280 deg is due to the Milky Way mask.
propmask : (ord/nside)cov=5/32 (ord/nside)sparse=12/4096 valid_pix=6015370 area=1232.58 deg² pix_size= 51.5"
starmask : (ord/nside)cov=5/32 (ord/nside)sparse=15/32768 valid_pix=79910864 area=255.85 deg² pix_size= 6.4"
mwmask : (ord/nside)cov=5/32 (ord/nside)sparse=8 /256 valid_pix=209658 area=10997.79 deg² pix_size= 824.5"
center = SkyCoord(280*u.deg, -15*u.deg) ; fov = 50*u.deg
fig, ax, wcs = mkp.plot_moc(stage='starmask', center=center, fov=fov, figsize=[7,4], label='starmask', color='b')
plt.legend();
Retrieving pixels...
Found 79910864 pixels
Creating display moc from pixels...
MOC max_order is 15 --> degrading to 8...
Drawing plot...

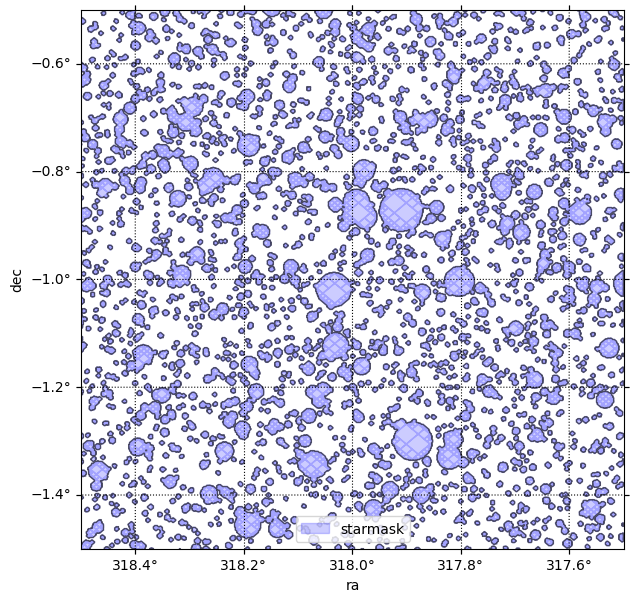

Make a zoom to clearly see what the mask is made of. Use a smaller field of view and, very important, clip the data outside the viewing regions to increase performance.
center = SkyCoord(318*u.deg, -1*u.deg) ; fov = 1*u.deg
clipra = [318-0.5, 318+0.5]
clipdec = [-1-0.5, -1+0.5]
fig, ax, wcs = mkp.plot_moc(stage='starmask', center=center, fov=fov, figsize=[7,7], label='starmask', color='b',
clipra=clipra, clipdec=clipdec)
plt.legend();
Retrieving pixels inside clip box...
Found 90576 pixels
Creating display moc from pixels...
MOC max_order is 15 --> no degrading...
Drawing plot...
there is also new stage mwmask due to the Milky Way.

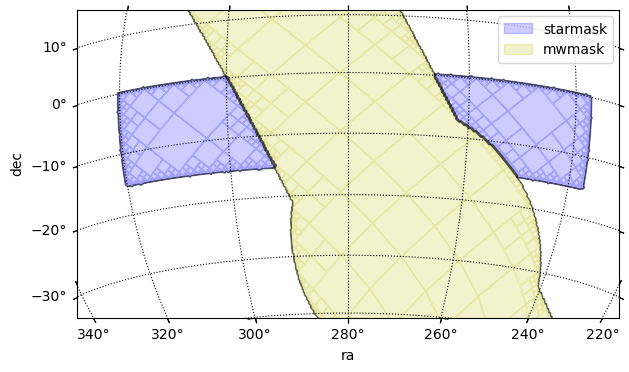

center = SkyCoord(280*u.deg, -15*u.deg) ; fov = 50*u.deg
fig, ax, wcs = mkp.plot_moc(stage='starmask', center=center, fov=fov, figsize=[7,4], label='starmask', color='b')
fig, ax, wcs = mkp.plot_moc(stage='mwmask', center=center, fov=fov, ax=ax, wcs=wcs, label='mwmask', color='y')
plt.legend();
Retrieving pixels...
Found 79910864 pixels
Creating display moc from pixels...
MOC max_order is 15 --> degrading to 8...
Drawing plot...
Retrieving pixels...
Found 209658 pixels
Creating display moc from pixels...
MOC max_order is 8 --> no degrading...
Drawing plot...
Saving stars¶
Skykatana can also save the stars queried by setting save_stars=True. This will save the stars of each chunk (with radius added) as a series of files named stars_chunk_01.parquet, stars_chunk_02.parquet, stars_chunk_03.parquet, etc.

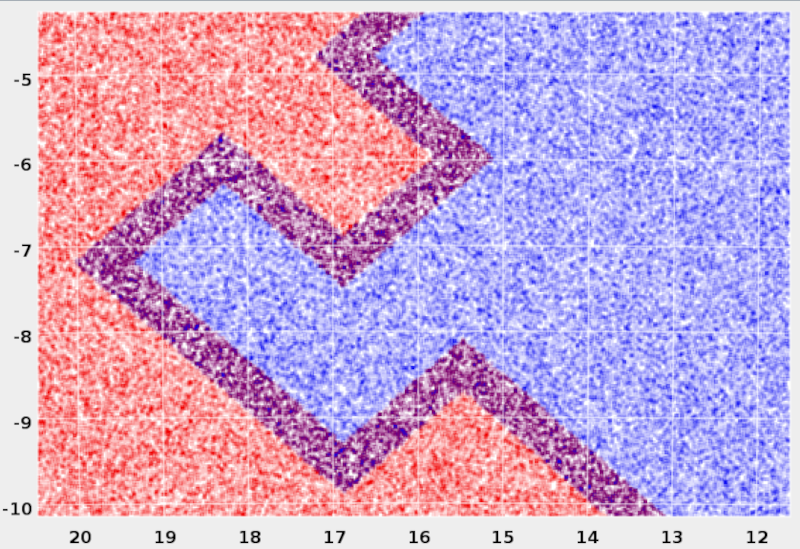

Note however there will be repeated stars. This is because by construction the MOCs of each part are enlarged along their borders to include the effect of stars slighly outside their own area. If you need a unique list, apply a simple deduplication algorithm by ra-dec position.
4. Combine and save to disk¶
In Skykatana, the combine() method can easily subtract the area vetted by bright star from the input propmask. Note we also subtract mwmask to mask out the galaxy in our original stage. The resulting mask stage now holds the "postive" area remaining.
[combine] aligning coverage for 'propmask' : c5 → c5
[combine] aligning coverage for 'starmask' : c5 → c5
[combine] aligning coverage for 'mwmask' : c5 → c5
[combine] target=(o15, c5), work_order=12, r2=64
[combine:+] stage at order 12 -> work 12
[combine] done: order_out=15 (NSIDE=32768), order_cov=5 (NSIDE=32), valid_pix=136,180,886, area=436.004 deg², bit_packed=True
propmask : (ord/nside)cov=5/32 (ord/nside)sparse=12/4096 valid_pix=6015370 area=1232.58 deg² pix_size= 51.5"
starmask : (ord/nside)cov=5/32 (ord/nside)sparse=15/32768 valid_pix=79910864 area=255.85 deg² pix_size= 6.4"
mwmask : (ord/nside)cov=5/32 (ord/nside)sparse=8 /256 valid_pix=209658 area=10997.79 deg² pix_size= 824.5"
mask : (ord/nside)cov=5/32 (ord/nside)sparse=15/32768 valid_pix=136180886 area=436.00 deg² pix_size= 6.4"

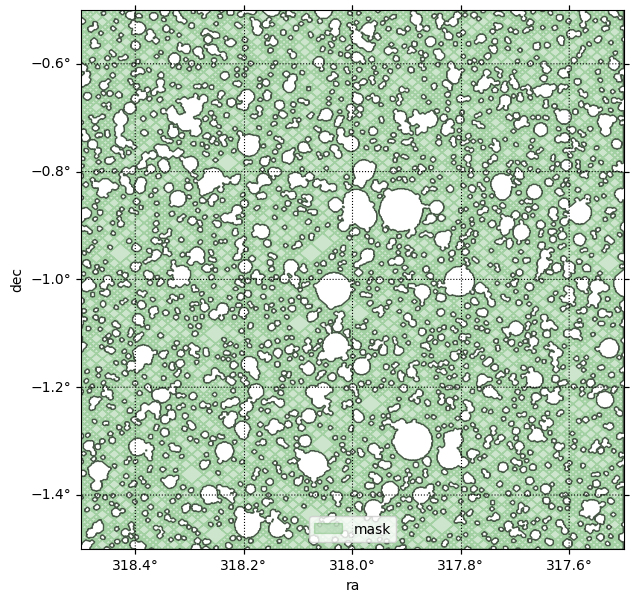

Lets check this combined mask by plotting a zoomed MOC
center = SkyCoord(318*u.deg, -1*u.deg) ; fov = 1*u.deg
clipra = [318-0.5, 318+0.5]
clipdec = [-1-0.5, -1+0.5]
fig, ax, wcs = mkp.plot_moc(stage='mask', center=center, fov=fov, figsize=[7,7], label='mask', color='g',
clipra=clipra, clipdec=clipdec)
plt.legend();
Retrieving pixels inside clip box...
Found 223192 pixels
Creating display moc from pixels...
MOC max_order is 15 --> no degrading...
Drawing plot...
Since we are happy with the results, save the pipeline to disk with write(). This will create a directory where each stage is saved in FITS format using bit-encoding compression, plus a JSON file holding various metadata.
5. Interactive plots¶
Skykatana can also generate interactive plots of mask MOCs, by leveraging the capabilities of the ipyaladin widget available for Jupyter.

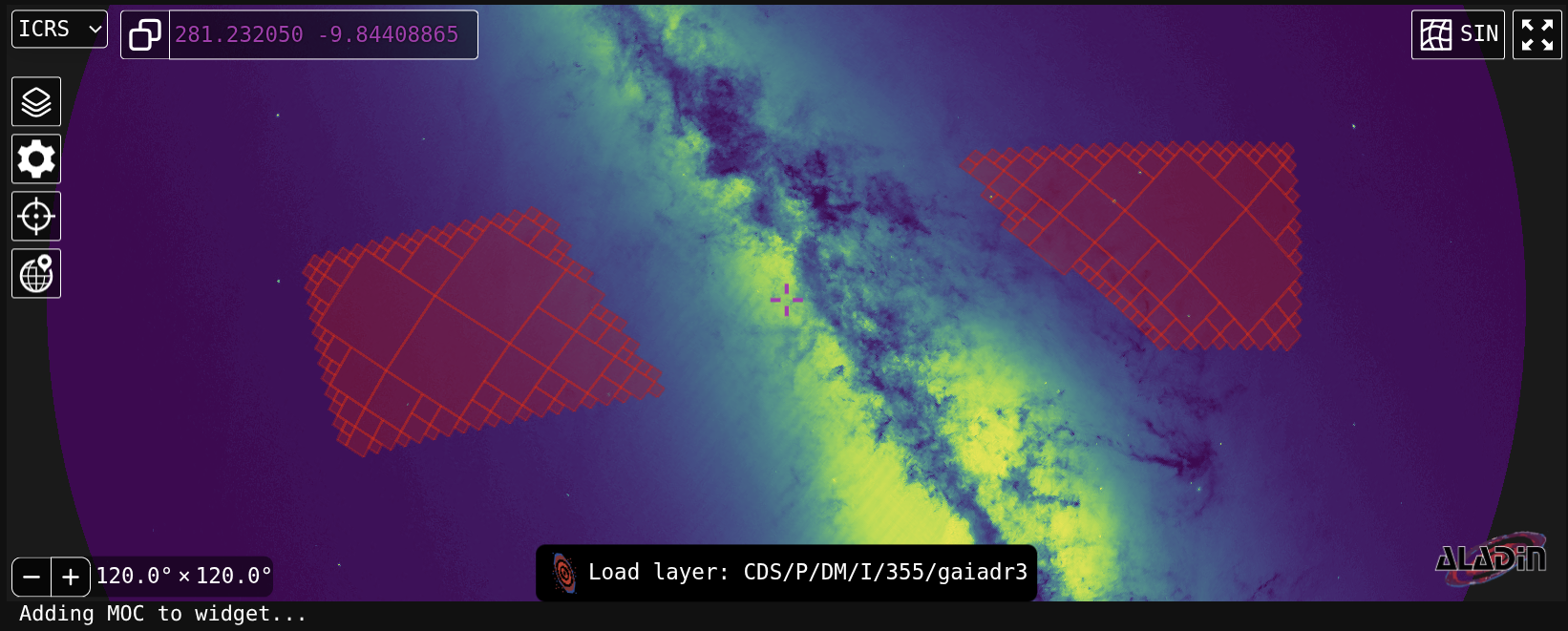

In this example, we overlay our starmask over the Gaia density map. The starmask is degraded to order 13 at the expense of washing out small circles, but this is important to speed up large-scale visualizations. Note how the search has indeed avoided the galactic plane and bulge because we set avoid_mw=True.
Below is screen capture of the widget you should be seeing, with the mask MOC loaded.
You can continue adding stages to the same widet with add_moca().
High orders and interactive visualizations
It is not recommended to attemp interactive visualizations of very large masks (thousands of sq degrees) with high orders (15-16), as the widget will receive a huge MOC and might become unresponsive. Best practice is to force a low order first, and then rise it untill results are statisfactory.
6. Fractional area maps¶
When investigating the effect of stars and other sources, a useful statistical measure is the fractional area masked out. That is, for a given order, the fractional area is the fraction of sparse pixels masked by those objects. For example, in dense regions near the galatic plane the number of pixels "occupied" by stars can be so high that this fraction can evan approach a value of one. In constrast, zones away from crowded stellar fields are expected to show a much lower fraction.
Healsparse provides a very efficient method to estimate these fractions. Based on it, Skykatana implements a convenient method (frac_area_map()), that optionally replaces the pixel around edges, which by construction have sistematically lower fractions, by local harmonic average values. The result is a map whose (floating point) values are between 0 and 1. For visualiztion, plot_fracmap() can automatically calculate the fractional map of any stage, generate its 2D image representation, and overlay it over a WCS axes with optional contour levels.
Lets create the fractional map of our starmask at order 8, which means the fraction is considered over pixels of about 14 arcmin size.

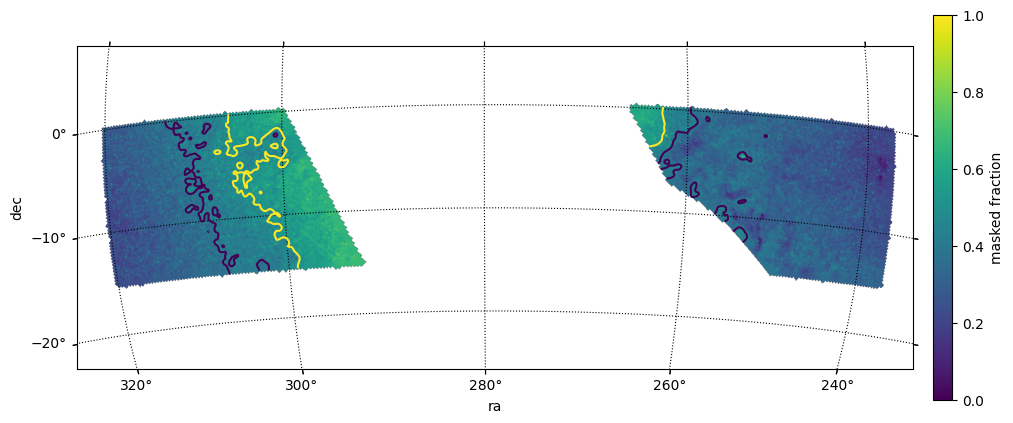

center = SkyCoord(279*u.deg, -10*u.deg) ; fov = 31*u.deg
fig, ax, wcs, im, cs = mkp.plot_fracmap(stage='starmask', center=center, fov=fov, figsize=[13,5], order_frac=8, avg_edges=True,
thresholds=[0.4,0.5], contour_smooth={'method':'gaussian', 'sigma_pix':3.0})
Fractions at edge pixels are being averaged
Fractional area map created at order 8: 13921 valid pixels
Tip for interactive display
If you install and enable the ipympl interative Jupyter backend, hovering the mouse over the image will show interactively the value of the fractional map.
Once you find a threshold suitable for the purposes of your mask, just use build_prop_mask() to construct it.
frac = SkyMaskPipe.frac_area_map(mkp.starmask, order_frac=6, avg_edges=True)
mkp.build_prop_mask(prop_maps=[frac],thresholds=[0.4],comparisons=['lt'],output_stage='goodmask', order_sparse=6, order_cov=5)
Fractions at edge pixels are being averaged
Fractional area map created at order 6: 985 valid pixels
BUILDING PROPERTY MAP >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
--- Propertymap mask area : 578.273321550494
And visualize everthing together
center = SkyCoord(279*u.deg, -10*u.deg) ; fov = 31*u.deg

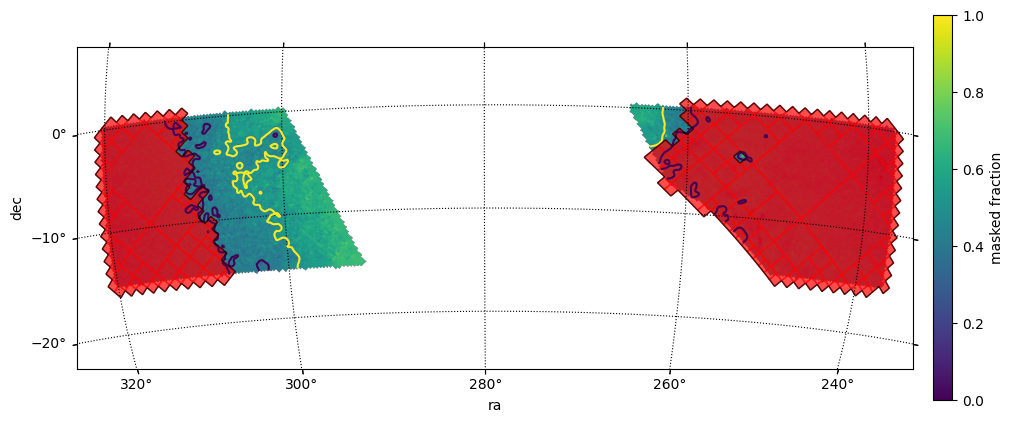

fig, ax, wcs, im, cs = mkp.plot_fracmap(stage='starmask', center=center, fov=fov, figsize=[13,5], order_frac=8, avg_edges=True,
thresholds=[0.4,0.5], contour_smooth={'method':'gaussian', 'sigma_pix':3.0})
fig, ax, wcs = mkp.plot_moc(stage='goodmask', center=center, fov=fov, ax=ax, wcs=wcs, color='r', alpha=0.7, order_force=6)
Fractions at edge pixels are being averaged
Fractional area map created at order 8: 13921 valid pixels
Retrieving pixels...
Found 689 pixels
Creating display moc from pixels...
MOC max_order is 6 --> degrading forcedly to 6...
Drawing plot...
Refine this mask a little more. We went down in order to take advantage of the averaging, so lets go back to the order of the search stage.
[change_sparse_order] goodmask requested upgrade o6 → o12
[change_sparse_order] goodmask done: o12 (NSIDE=4096), cov=o5, n_valid=2,822,144, encoding=bool
And intersect this goodmask with the search stage while subtracting the Milky Way mask. This will get rid of the peaks of the coarser fractional map around the edges while preserving a "smooth" trasition across the threshold boundary.
mkp.combine(positive=[('propmask','goodmask')], negative=['mwmask'], order_out=12, order_cov=5, output_stage='bettermask')
[combine] aligning coverage for 'propmask' : c5 → c5
[combine] aligning coverage for 'goodmask' : c5 → c5
[combine] aligning coverage for 'mwmask' : c5 → c5
[combine] target=(o12, c5), work_order=12, r2=1
[combine:&] group of 2 stages: orders=[12, 12] -> work 12
[combine] done: order_out=12 (NSIDE=4096), order_cov=5 (NSIDE=32), valid_pix=2,344,698, area=480.442 deg², bit_packed=True

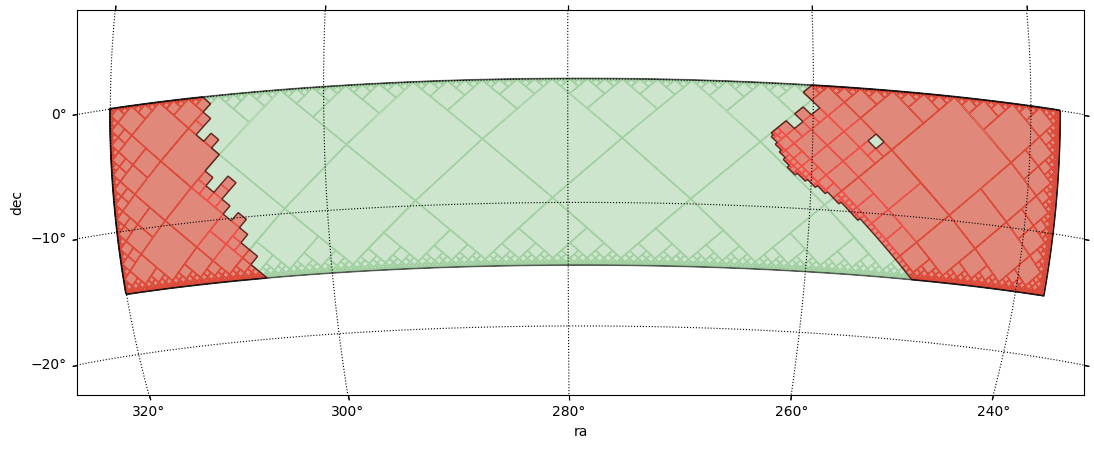

center = SkyCoord(279*u.deg, -10*u.deg) ; fov = 31*u.deg
fig, ax, wcs = mkp.plot_moc(stage='propmask', center=center, fov=fov, figsize=[13,5], color='g', order_force=12)
fig, ax, wcs = mkp.plot_moc(stage='bettermask', ax=ax, wcs=wcs, color='r', alpha=0.4, order_force=12)
Retrieving pixels...
Found 6015370 pixels
Creating display moc from pixels...
MOC max_order is 12 --> degrading forcedly to 12...
Drawing plot...
Retrieving pixels...
Found 2344698 pixels
Creating display moc from pixels...
MOC max_order is 12 --> degrading forcedly to 12...
Drawing plot...
